Features

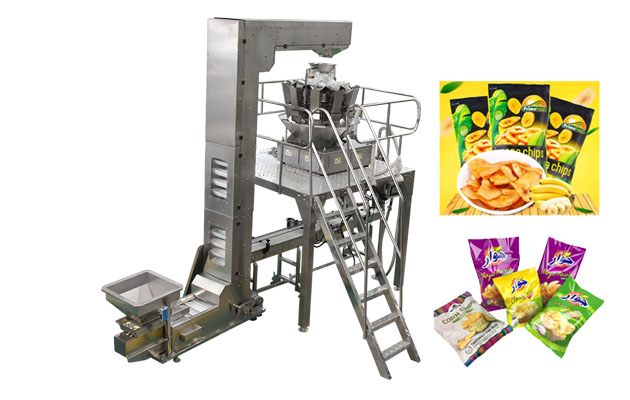

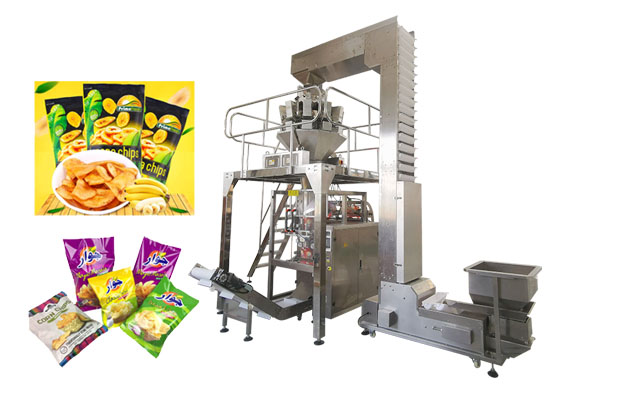

Introduction of Automatic Potato Chips Packing Machine
Working Video of Automatic Chips Packing Machine 10 Scale
This automatic potato banana chips packing machine adopts universal measuring cup type onoff blanking method, or a combination of intelligent packaging, all the material feeding method is customized according to your material requirements, and this machiene can automatically complete material lifting, combination weigher measurement, coding, bag making, filling-inflation, exhaust (optional), sealing, counting-finished product output, Finished product finishing automaticallly.
Performance characteristicsof Ten Scale Chips Packing Machine

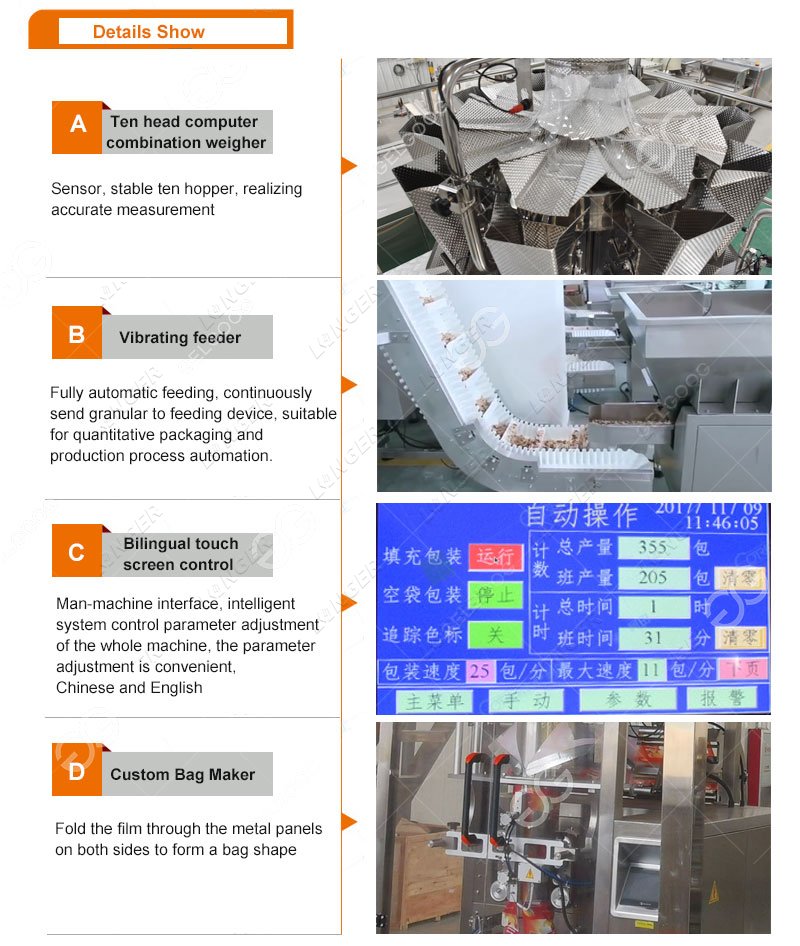

1. It adopts PLC servo and pneumatic control system, and touch screen forms the core of the drive control; it is highly reliable and intelligent;
2. The touch screen can store the packaging process parameters of a variety of different products, which can be used at any time when the product is changed without resetting.
3. Equipped with a fault display system, faults can be clear at a glance, so that they can be eliminated in time.
4. The combination weigher ensures stable and accurate packaging weight.
5. Medium-speed and high-speed machines are optional to meet the requirements of different production volumes.
6.The packaging machine can be equipped with various functional options, such as gussets, punching, etc.
7. According to the needs, the combination weigher can be equipped with a collecting hopper, a pattern plate hopper, etc., suitable for different materials
Working Video of Automatic Chips Packing Machine 10 Scale
Application of Automatic Chips Packing Machine
This packing machine is not only suitable for fragile materials, such as potato chips, rice crust, apple slices, banana chips, also can pack hardware, Fresh noodles, jelly, dates and other granular material, but also suitable for automatically packing granule, block and strip, such as puffed food, prawn cracker, peanut, melon seeds and granule, feed, fertilizer, monosodium glutamate, seeds, nuts, cashews, almonds etc, suitable for food, pharmaceutical, chemical, cosmetics, daily necessities, toys, pesticide, medicine, hardware and other industries of packaging requirements
The automatic potato chips packing machine has the color labeling system, when packaging the colored packaging materials, can obtain the complete trademark pattern. Steplessly adjust speed and bag length: The packaging speed and bag length can be adjusted at the rated range without changing parts; The contact material parts are all made of 304 stainless steel, clean and hygienic, and fully comply with the national food hygiene standards. Unique embedded sealing, enhanced heat sealing mechanism, intelligent temperature controller, temperature control has good heat balance to adapt to all kinds of packaging materials, sealed performance is good, low noise, texture clear, strong sealing; Replace the cutter can be realized even mouth cutting, one glyph joint cutting, decorative pattern, quantitative shear, in order to achieve multi-usage function, more convenient or using, can change according to the requirements of trilateral or heat sealing four edges of mould and bag making machine, to meet the needs of different products.
This auotmatic banana chips packing machine can be used alone, also can be used with automatic banana chips processing plant.
This auotmatic banana chips packing machine can be used alone, also can be used with automatic banana chips processing plant.
Technical Data
| Model | LGC-320 |
| Packing Speed | 40-60Bags/min |
| Total Power | 3.0KW/220V |
| Measure Range |
5-100piece 20-100g |
| Gross Weight | 400Kg |
| Bag Size Making |
L: 50-150mm W: 40-150mm |
| Thickness Of Packing Film | 0.03-0.08mm |
| Dia. Rolling Paper | <=450 |
| Size | 750*980*1680mm |
FAQ
1, How much is the machine cost? Answer: Different models have different price, just tell us your requirement, our sale will suggest you suitable model and price. 2, What is the raw material of your machine? Answer: Our machines are made of stainless steel material, if you have special requirement for the machine, just feel free to tell us. 3, What if the voltage can't fit our country? Answer: The voltage can be customized, just tell us before the machine is made. 4, For the frying machine, which heating way is better? Answer: Dear, we have gas heating and electric heating, also can be customized. You can choose the suitable one according to your need.
